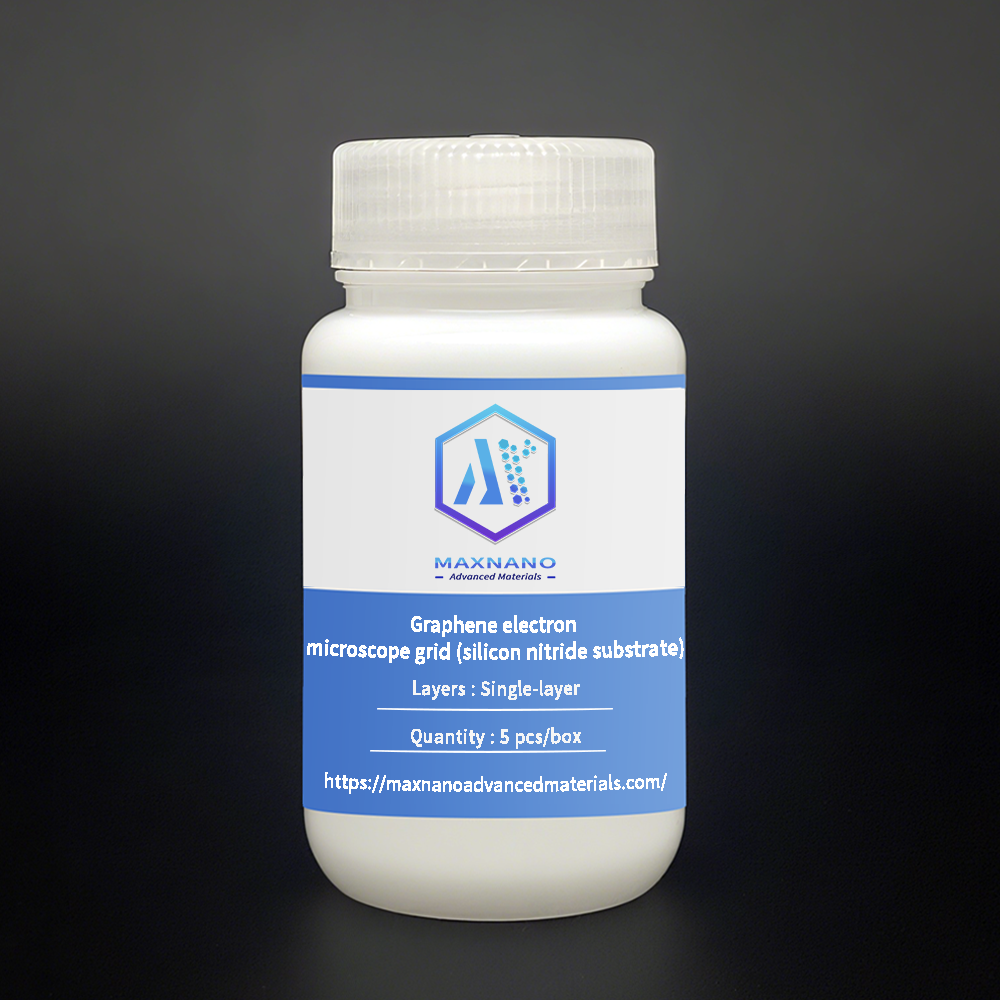

Graphene electron microscope grid (silicon nitride substrate)
$750.00
High-quality monolayer to multi-layer graphene transferred onto silicon nitride TEM grids. Offers superior electron transparency, exceptional thermal stability, and excellent mechanical robustness for advanced TEM imaging and in situ studies.
Substrate: Silicon Nitride Membrane
Layers: Mono/Bi/3-5/6-8 layers
Grid Type: Standard TEM format
Contact: sales@maxnanotech.com
Important Notes
- No Refunds or Exchanges: All sales are final. MAXNANO does not provide return, exchange, or refund services under any circumstances.
- Customs and Import Obligations: Clearance procedures, import duties, taxes, and related costs are solely the responsibility of the recipient/importer. MAXNANO shall not be held liable for delays, rejections, or any additional expenses incurred during customs processes. Such issues shall not constitute grounds for order cancellation or refund.
- Order Cancellation: Orders cannot be revoked once submitted. No refunds will be issued for cancelled or undelivered orders.
- Indemnification: The purchaser agrees to bear all claims, losses, legal liabilities, and expenses arising from the use of products and services, and shall hold MAXNANO, its affiliates, and personnel harmless from such obligations.
- Terms and Conditions: All orders and business interactions are subject to MAXNANO’s standard Terms and Agreements.
Inquiry Now
Overview
This product features high-quality CVD graphene transferred onto silicon nitride TEM grids, specifically designed for advanced microscopy and nanomaterial research. Utilizing catalytic chemical vapor deposition on metal substrates followed by a PMMA-assisted transfer process, these samples provide excellent electron transparency and mechanical stability for high-resolution TEM characterization. The silicon nitride substrate offers superior thermal and mechanical properties compared to conventional carbon-based TEM grids, making it ideal for demanding imaging applications.
Specifications
-
Substrate: Silicon Nitride Membrane
-
Available Layers: Monolayer, Bilayer, 3-5 Layers, 6-8 Layers
-
Grid Type: Standard TEM Grid Format
Key Features
-
Superior Electron Transparency: Silicon nitride substrate provides excellent imaging quality with low background noise
-
High Crystallinity: Maintains graphene’s characteristic hexagonal lattice structure
-
Thermal Stability: Withstands higher beam currents and longer exposure times than conventional grids
-
Mechanical Robustness: Silicon nitride membrane offers improved durability during handling and imaging
-
Customizable Layer Number: Available in various layer configurations for comparative studies
Applications
-
High-Resolution TEM: Atomic-scale imaging of graphene defects and grain boundaries
-
In Situ Studies: Suitable for heating, biasing, and environmental TEM experiments
-
Nanoparticle Research: Ideal support for nanoparticle dispersion and catalysis studies
-
Electronic Property Characterization: Layer-dependent electronic structure investigation
-
Educational Use: Premium samples for advanced microscopy training and demonstration
Note
-
Some catalyst residues may appear as dark spots under TEM – this is normal and can potentially be reduced with dilute acid treatment
-
Samples are packaged in standard TEM grid holders for safe storage and handling
Contact Information
For technical specifications and custom layer requests:
Email: sales@maxnanotech.com
| Weight | 100 g |
|---|---|
| Dimensions | 30 × 20 × 20 mm |
| Specification | Single-layer, 5 pcs/box, 5 pcs, Double-layer, 5 pcs/box, 5 pcs, 3-5 layers, 5 pcs/box, 5 pcs, 6-8 layers, 5 pcs/box, 5 pcs |
