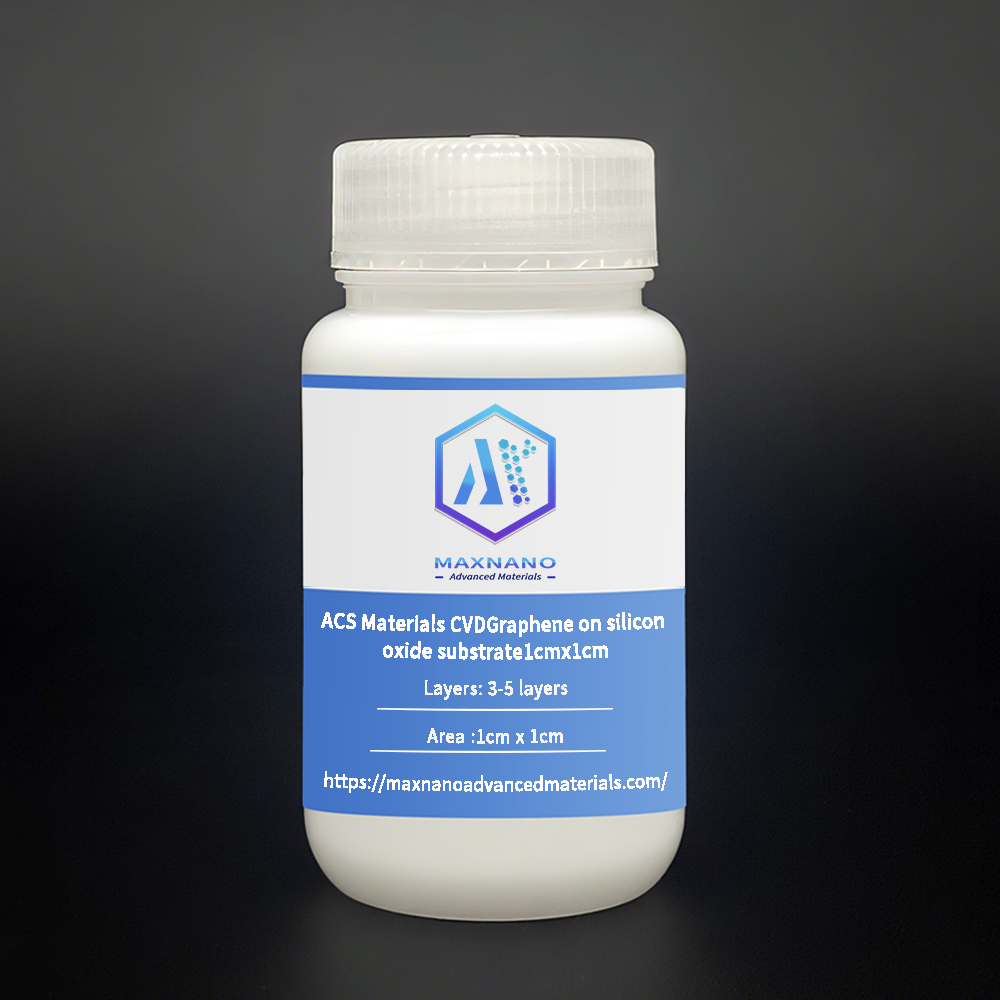

CVDGraphene on silicon oxide substrate1cmx1cm

Overview
CVD graphene is synthesized through a carefully controlled chemical vapor deposition process involving three critical elements: substrate selection, carbon precursor, and growth conditions. Suitable substrates include transition metals such as Cu, Ni, Pt, and their alloys, with the growth mechanism varying based on the substrate—either through carbon segregation and precipitation or surface-catalyzed deposition. Copper substrates, in particular, facilitate the formation of high-quality monolayer graphene due to their self-limiting catalytic behavior.

This product consists of graphene grown via CVD on a metal substrate, then transferred onto a 1 cm × 1 cm SiO₂/Si wafer—a standard and widely used substrate in electronic and photonic device research and prototyping.

Specifications

• Substrate: 300 nm SiO₂ on Si

• Chip Size: 1 cm × 1 cm

• Available Layers: Monolayer, Bilayer, 3–5 Layers, 6–8 Layers

Key Features

• High Crystallinity and Uniformity: Offers exceptional electronic and structural quality

• Excellent Electrical Properties: Displays high carrier mobility and low sheet resistance

• Outstanding Optical Transparency: Maintains high visible-light transmittance

• Superior Mechanical Properties: Combines flexibility with high tensile strength

• Chemical Stability: Resists degradation under ambient conditions

Applications

• Electronic Devices: Field-effect transistors (FETs), RF devices, and integrated circuits

• Optoelectronics: Transparent conductive electrodes, touch panels, and flexible displays

• Sensing Platforms: Chemical sensors, gas detectors, and biosensors

• Energy Devices: Solar cells, supercapacitors, and battery electrodes

• Composite Integration: Used as a functional layer to enhance mechanical, electrical, or barrier properties

Note
Graphene is grown on metal catalysts (e.g., copper foil) and transferred onto SiO₂/Si substrates using a PMMA-assisted wet transfer process, which ensures high purity and minimal defects.
