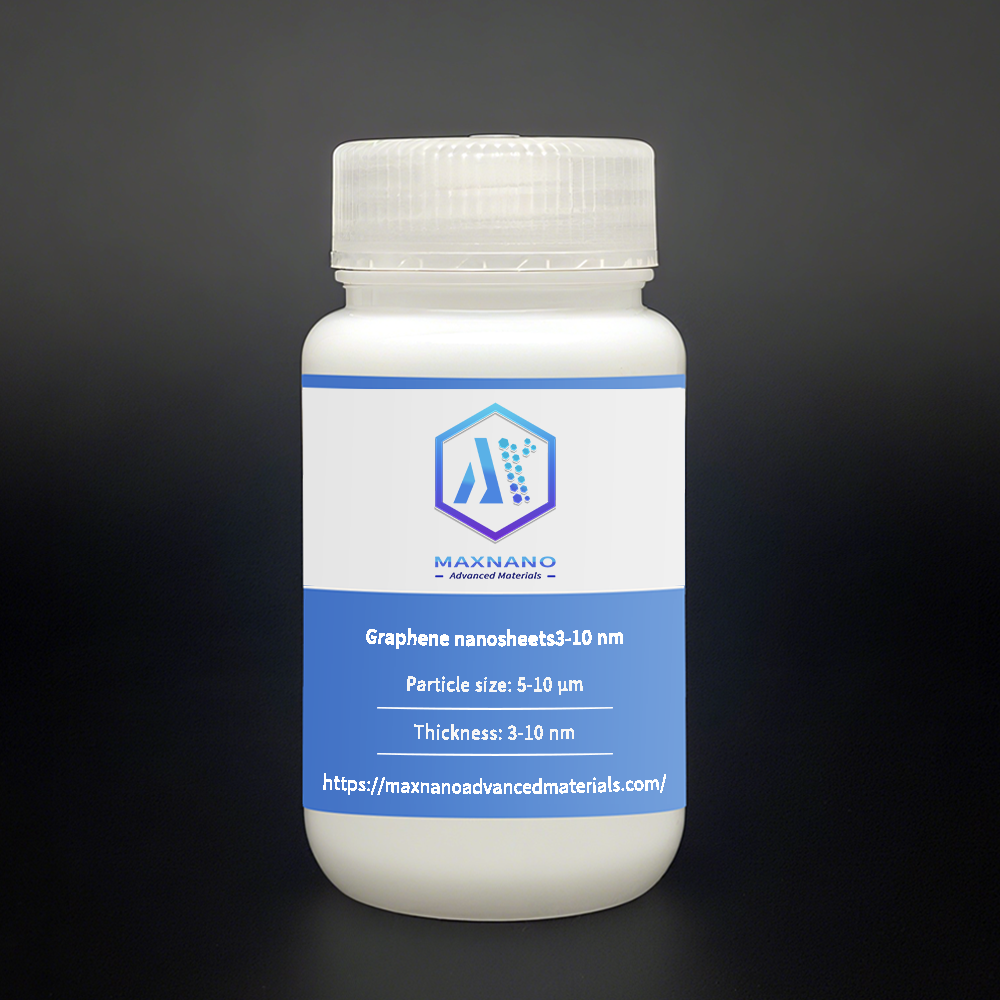

graphene nanosheets3-10 nm
Price range: $20.83 through $1,125.00
Graphene nanosheets with a thickness of 3-10 nm, produced via liquid-phase ultrasonic exfoliation. This gray-black powder features high purity (>99.5% carbon), excellent electrical and thermal conductivity, and adjustable dimensions. Ideal for conductive composites, thermal management systems, energy storage, coatings, sensors, and lubricants.
Key Specifications:
-
Diameter: 5-10 μm
-
Specific Surface Area: 31.657 m²/g
-
Low defect density, high chemical stability
Contact: sales@maxnanotech.com
Important Notes
- No Refunds or Exchanges: All sales are final. MAXNANO does not provide return, exchange, or refund services under any circumstances.
- Customs and Import Obligations: Clearance procedures, import duties, taxes, and related costs are solely the responsibility of the recipient/importer. MAXNANO shall not be held liable for delays, rejections, or any additional expenses incurred during customs processes. Such issues shall not constitute grounds for order cancellation or refund.
- Order Cancellation: Orders cannot be revoked once submitted. No refunds will be issued for cancelled or undelivered orders.
- Indemnification: The purchaser agrees to bear all claims, losses, legal liabilities, and expenses arising from the use of products and services, and shall hold MAXNANO, its affiliates, and personnel harmless from such obligations.
- Terms and Conditions: All orders and business interactions are subject to MAXNANO’s standard Terms and Agreements.
Inquiry Now
Overview
Graphene nanoplates are multi-layer graphene structures with a controlled thickness of 3-10 nm, produced via liquid-phase ultrasonic exfoliation. This method preserves the intrinsic properties of graphene—including its exceptional electrical and thermal conductivity—while enabling easy integration into various materials and applications. The material exhibits high carbon content, low defect density, and tunable dimensions, making it suitable for both research and industrial use.
Specifications
-
Form: Gray-black powder
-
Diameter: 5-10 μm
-
Thickness: 3-10 nm
-
Specific Surface Area: 31.657 m²/g
-
Carbon Content: >99.5%
Key Features
-
Excellent Electrical Conductivity: Low resistivity and high electron mobility
-
High Thermal Conductivity: Few surface defects ensure efficient heat transfer
-
Chemical Stability: Stable structure under ambient conditions
-
Adjustable Dimensions: Available in various thicknesses to meet application needs
-
High Purity: Carbon content exceeding 99.5%
Applications
-
Conductive Composites: Enhanced polymers, resins, and elastomers for electronics and EMI shielding
-
Thermal Management: Heat spreaders for LEDs, smartphones, and high-power devices
-
Energy Storage: Electrodes for lithium-ion batteries and supercapacitors
-
Coatings: Anti-corrosion, conductive, or barrier coatings for metals and glass
-
Sensors: Chemical, biological, and environmental sensing platforms
-
Lubricants: Additives for reducing friction in automotive and industrial applications
Contact Information
Email: sales@maxnanotech.com
| Weight | 100 g |
|---|---|
| Dimensions | 30 × 20 × 20 mm |
| Specification | Particle size: 5-10 μm, Thickness: 3-10 nm, 1g, Particle size: 5-10 μm, Thickness: 3-10 nm, 10g, Particle size: 5-10 μm, Thickness: 3-10 nm, 100g, Particle size: 5-10 μm, Thickness: 3-10 nm, 50g |
