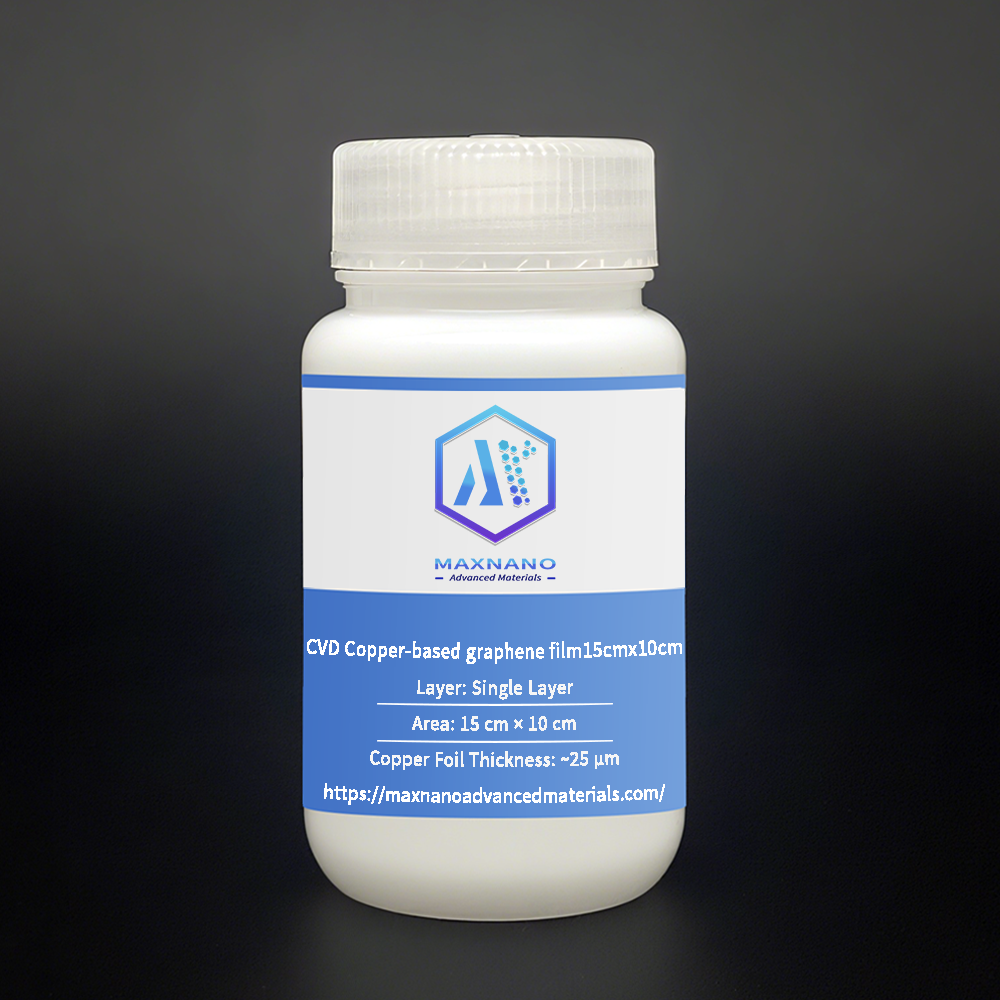

CVDCopper-based graphene film15cmx10cm

Price range: $1,500.00 through $1,802.08

Grown on 25μm copper via self-limiting CVD. Uniform 1-8 layers, high conductivity, flexibility, and transparency. Ready for direct use or transfer. Ideal for electronics, sensors, energy devices, and composites.

  • Substrate: 25μm copper foil

  • Raman pretreatment: specify method
    Email: Sales@maxnanotech.com

Important Notes

  •  No Refunds or Exchanges: All sales are final. MAXNANO does not provide return, exchange, or refund services under any circumstances.
  • Customs and Import Obligations: Clearance procedures, import duties, taxes, and related costs are solely the responsibility of the recipient/importer. MAXNANO shall not be held liable for delays, rejections, or any additional expenses incurred during customs processes. Such issues shall not constitute grounds for order cancellation or refund.
  • Order Cancellation: Orders cannot be revoked once submitted. No refunds will be issued for cancelled or undelivered orders.
  • Indemnification: The purchaser agrees to bear all claims, losses, legal liabilities, and expenses arising from the use of products and services, and shall hold MAXNANO, its affiliates, and personnel harmless from such obligations.
  • Terms and Conditions: All orders and business interactions are subject to MAXNANO’s standard Terms and Agreements.

Inquiry Now

Product Overview
We utilize advanced chemical vapor deposition (CVD) technology to synthesize high-quality graphene directly on copper foil substrates. Our process employs copper’s excellent surface catalytic properties to enable controlled graphene growth through self-limiting mechanisms, ensuring uniform large-area coverage ideal for both research and industrial applications.

Specifications

  • Substrate Material: High-purity copper foil (~25μm thickness)

  • Graphene Area: 15cm × 10cm

  • Layer Options: Single, Double, 3-5, 6-8 layers

  • Pretreatment Note: For Raman testing, specify preferred method (front-side PMMA coating or back-etching)

Key Features

  • High Crystallinity: Excellent purity with uniform crystal structure

  • Superior Electrical Properties: High carrier mobility and low resistivity

  • Good Transparency: Maintains high visible light transmittance

  • Mechanical Flexibility: Withstands bending and handling stress

  • Chemical Stability: Stable performance at room temperature

Applications

  • Electronic devices (transistors, capacitors)

  • Transparent conductive films and touch screens

  • Chemical and biological sensors

  • Solar cells and supercapacitors

  • Composite material enhancement

Technical Support
Our team provides:

  • Customized pretreatment options

  • Transfer methodology guidance

  • Application-specific consulting

  • Comprehensive technical documentation

Contact Information
For product details and technical consultation:
Email: Sales@maxnanotech.com

Weight 100 g
Dimensions 30 × 20 × 20 mm
Specification

Layers: Single-layer; Dimensions: 15 cm × 10 cm; Copper foil thickness: ~25 μm, Layers: Double-layer; Dimensions: 15 cm × 10 cm; Copper foil thickness: ~25 μm, Layers: 3–5 layers; Dimensions: 15 cm × 10 cm; Copper foil thickness: ~25 μm, Layers: 6–8 layers; Dimensions: 15 cm × 10 cm; Copper foil thickness: ~ 25 μm, Layers: Single-layer; Dimensions: 15 cm × 10 cm; Pre-treated
