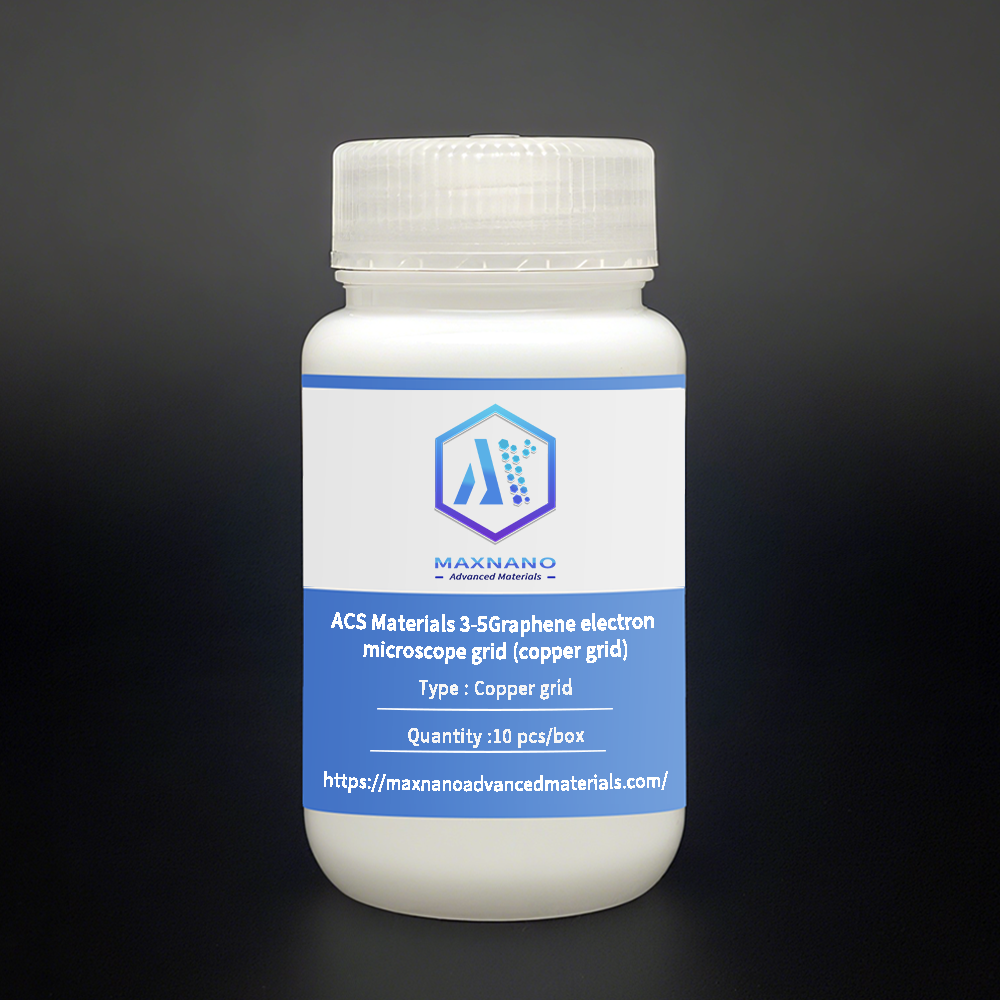

3-5Graphene electron microscope grid (copper grid)

Overview
This product features 3-5 layer graphene grown via chemical vapor deposition (CVD) and transferred onto 2000-mesh copper TEM grids. The CVD process utilizes transition metal substrates—particularly copper—which promote surface-catalyzed growth for controlled layer formation. The graphene is specifically prepared for electron microscopy applications, providing researchers with a ready-to-use sample for structural and property characterization at the nanoscale.

Specifications

• Substrate: 2000-mesh Copper TEM Grid

• Graphene Layers: 3-5 layers

• Growth Method: Catalytic CVD on copper foil

• Transfer Method: PMMA-assisted wet transfer

Key Features

• High Crystallinity: Provides well-defined lattice structure for high-resolution imaging

• Electron Transparency: Suitable for TEM and SEM observation

• Layer Uniformity: Controlled 3-5 layer thickness ensures consistent electronic properties

• Mechanical Stability: Withstands electron beam exposure during extended microscopy sessions

• Chemical Compatibility: Can be treated with dilute acid to reduce catalyst residues

Note

• Small dark spots visible under electron microscopy are typical catalyst residues from the growth process

• Soaking in dilute hydrochloric acid may improve sample cleanliness and contrast

Applications

• TEM/SEM Analysis: Direct structural characterization of multi-layer graphene

• Electronic Property Studies: Layer-dependent electrical behavior and defect analysis

• Material Research: Support membrane for nanoparticle imaging and hybrid material studies

• Educational Use: Ready-made sample for microscopy demonstrations and training
