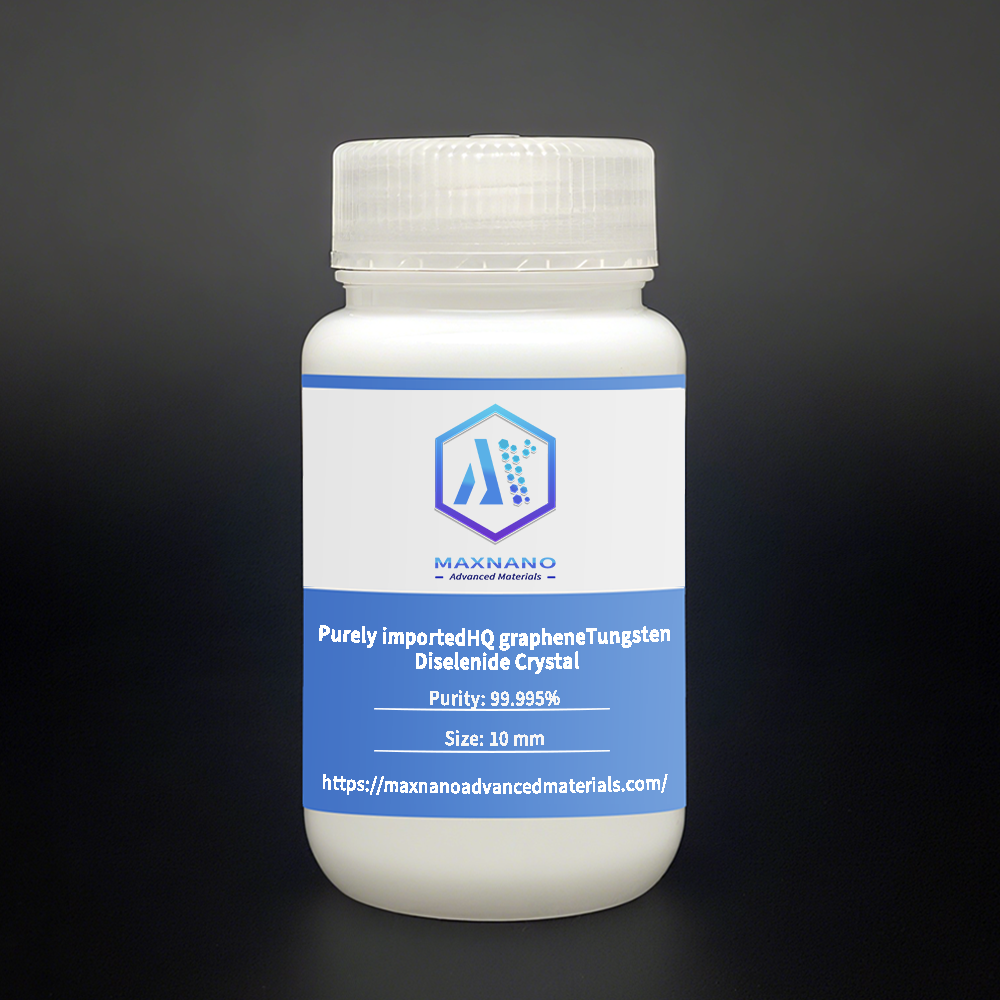

Purely importedHQ grapheneTungsten Diselenide Crystal
$2,250.00
High-purity tungsten diselenide (WSe₂) crystals, >99.995% purity, 8-10 mm size. Semiconductor with indirect bandgap of ~1.3 eV (direct in monolayers), available in n-type and p-type forms. Ideal for field-effect transistors, solar cell absorbers, lithium-ion batteries, and HER catalysts.
Structure: Hexagonal
Packaging: Standard customized packaging
Typical Applications: Low-power electronics, thin-film photovoltaics, battery electrodes, water-splitting catalysis
Email: sales@maxnanotech.com
Important Notes
- No Refunds or Exchanges: All sales are final. MAXNANO does not provide return, exchange, or refund services under any circumstances.
- Customs and Import Obligations: Clearance procedures, import duties, taxes, and related costs are solely the responsibility of the recipient/importer. MAXNANO shall not be held liable for delays, rejections, or any additional expenses incurred during customs processes. Such issues shall not constitute grounds for order cancellation or refund.
- Order Cancellation: Orders cannot be revoked once submitted. No refunds will be issued for cancelled or undelivered orders.
- Indemnification: The purchaser agrees to bear all claims, losses, legal liabilities, and expenses arising from the use of products and services, and shall hold MAXNANO, its affiliates, and personnel harmless from such obligations.
- Terms and Conditions: All orders and business interactions are subject to MAXNANO’s standard Terms and Agreements.
Inquiry Now
Product Overview
HQ Graphene WSe₂ is a high-purity semiconductor material with an indirect band gap of approximately 1.3 eV. Notably, monolayer WSe₂ exhibits a direct band gap. As a Group VI transition metal dichalcogenide (TMDC), it consists of layers stacked by van der Waals interactions, allowing easy exfoliation into thin two-dimensional sheets. Our crystals feature a hexagonal morphology with a metallic luster and typical lateral dimensions of 0.8–1 cm. We offer both n-type and p-type WSe₂, which typically show carrier densities around 10¹⁵ cm⁻³ at room temperature.
Specifications
-
Purity: > 99.995%
-
Size: ~6–8 mm
-
Color: Silver Gray
-
Crystal Structure: Hexagonal
-
Unit Cell Parameters: a = b = 0.328 nm, c = 1.298 nm, α = β = 90°, γ = 120°
-
Type: Synthetic Crystal
Key Features
-
Semiconducting Behavior: Available in p-type and n-type forms
-
High Purity: Exceeding 99.995%
-
Layered Structure: Facilitates mechanical exfoliation into 2D layers
-
Stable Crystal Quality: Uniform hexagonal morphology with metallic appearance
Applications
-
Electronics: High-performance, low-power field-effect transistors (FETs) and next-generation nanoelectronic integrated circuits
-
Energy: Absorption layer in thin-film solar cells and electrode material for lithium-ion batteries
-
Catalysis: Hydrogen evolution reaction (HER) catalyst for efficient water-splitting and hydrogen production
Contact Us
For product details or inquiries, please contact:
Email: sales@maxnanotech.com
| Weight | 100 g |
|---|---|
| Dimensions | 30 × 20 × 20 mm |
| Specification | Purity: 99.995%; Size: ~10 mm |
